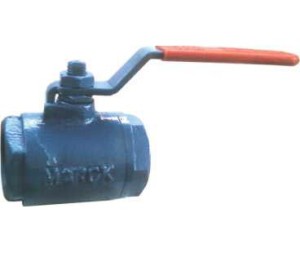

BODYIS 210 Gr FG 200 | 220

BALLAISI 304 | ASTM A 351 Gr CF8

STEMAISI 304

SEAT & SEALSPTFE

MFG STDGENERALLY CONFORMING TO BS 5159

TESTING BS 6755 | BS 5159

ENDS SCREWED TO BSP | BSPT | NPT FLANGED TO BS 10 TABLE “F ”

HYD-TEST PRESSUREBODY : 225 Psig (16 Kg/Cm ²) SEAT : 165 Psig (11.5 Kg/Cm ²)

SIZE RANGE15 MM TO 100 MM
